Unmanned Aerial Vehicle (UAV) based geomagnetic mapping and thermal imaging

Principal Investigator

Dr. Friedemann Samrock, ETH Zurich

Researchers

Prof. Martin O. Saar, ETH Zurich

Franco Aubert, ETH Zurich

Nils Knornschild, ETH Zurich

Christoph Wetter, ETH Zurich

Collaborators

Dr. Cedric Schmelzbach, ETH Zürich

Start date

01.03.2019

Funding

ETH Zurich

Supervisor

Dr. Friedemann Samrock, Zurich

Description

Overview

Over the last decade, UAV based geophysical prospecting has emerged as promising technology since it allows low-cost and time-efficient surveying even in difficult terrain. Within this project are developing tools for geomagnetic mapping and aerial thermography.
Magnetic anomaly maps typically show the total intensity of the geomagnetic field. Local variations in the magnetic field intensity are caused by lateral changes in the magnetic mineral content of rocks and reveal hidden lithological units and tectonic structure. By conducting aeromagnetic surveys, we plan to collect valuable data that help to understand the local geology.
Remote thermographic imaging using an UAV based thermal camera implies the production of surface temperature maps. This technique allows time-efficient mapping of geothermal surface expressions such as hot springs, steaming ground and fumarolic activity in volcanic areas.

Equipment

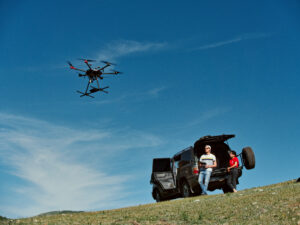

DJI Mavic 600 pro (maximum payload 6 kg)
Sensys Magdrone R3 magnetometer
Zenmuse XT2 dual thermal and optical camera

Results

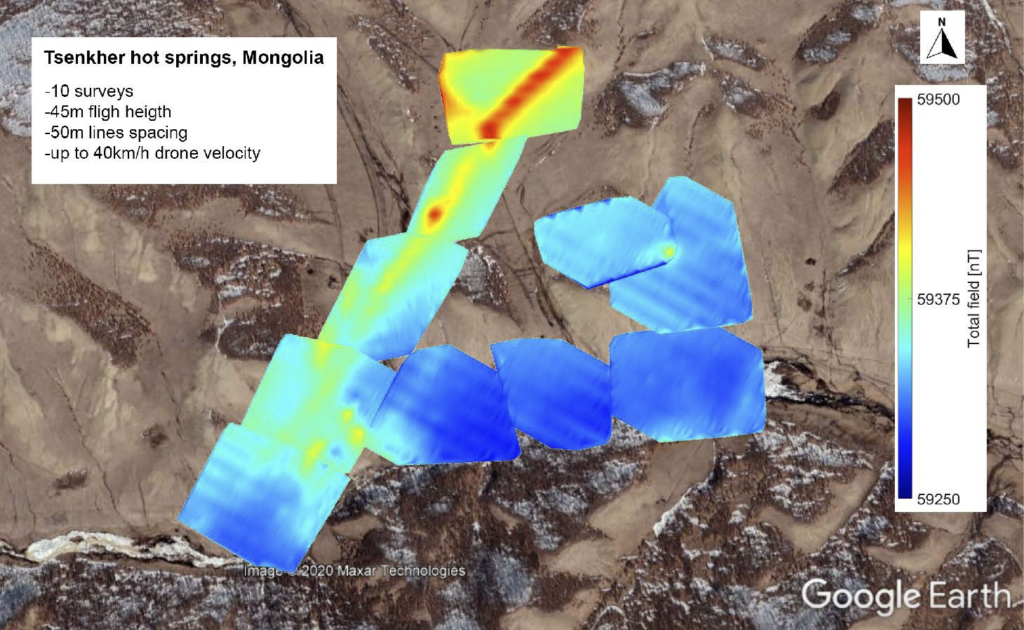

The geomagnetic map shown below is based on more than 100km of tracks that were flown at the Tsenkher geothermal area in Mongolia. The NE-SW trending anomaly indicates a buried fault that possibly acts as permeable upflow zone for hot fluids, which feed the hot springs at the surface.
